CellarPro 6200/8200 VS Duct KIT (Hot Side) #15092

Custom rear duct kit for CellarPro 6200 / 8200 VS cooling units. With this kit, the hot air intake/exhaust each can be ducted up to 50 equivalent feet (25 feet per opening).

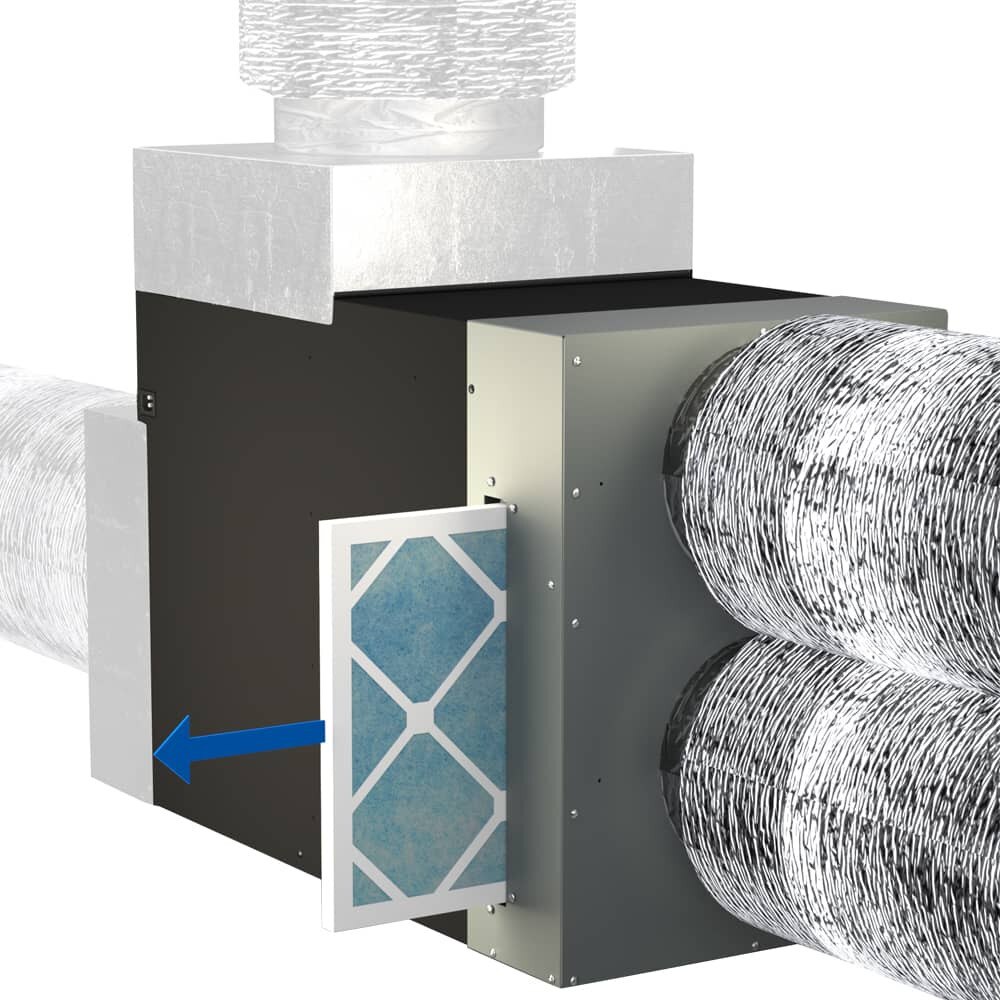

CellarPro 6200/8200 VS Duct KIT (Hot Side) (P/N 15092). Duct openings are designed to attach to two 8-inch ducts for condenser intake and exhaust. Removable slot plate provides easy access to removable air filter.

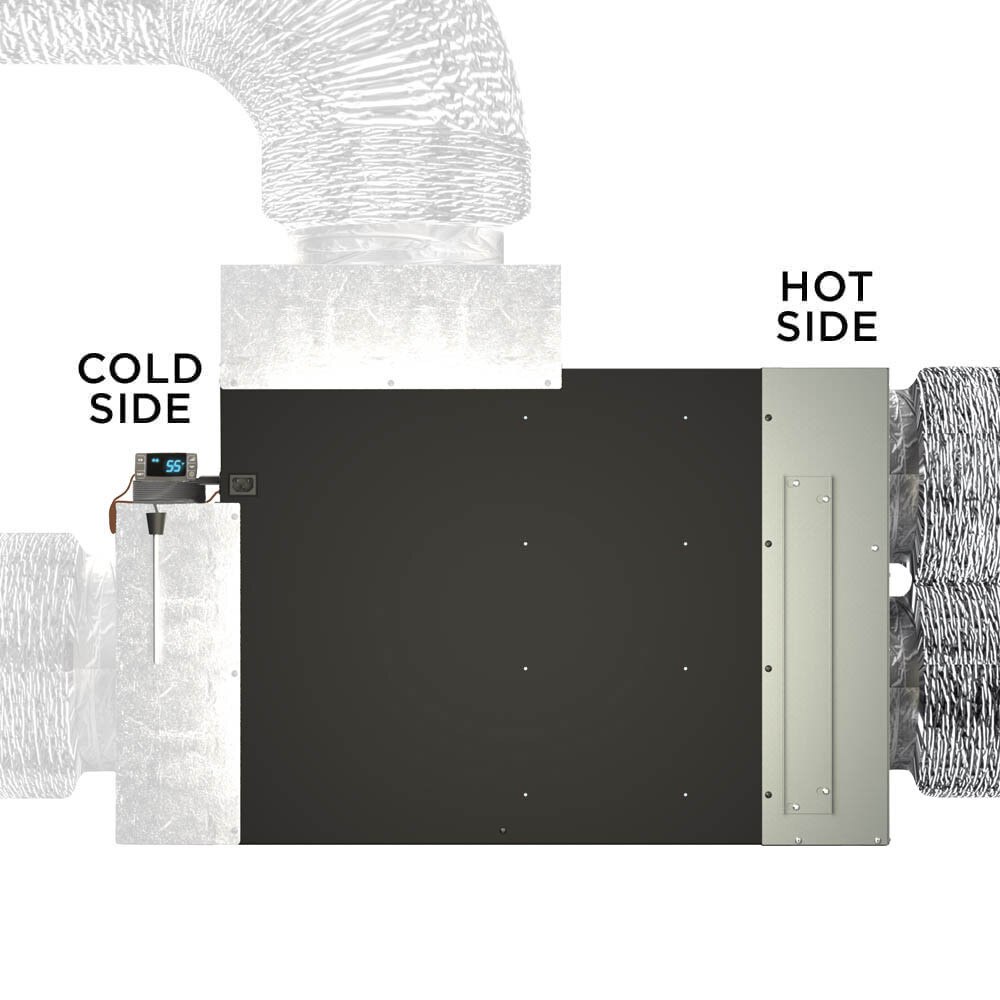

Shown at left: front duct kit (right) AND rear duct kit (left). The front duct kit is sold separately.

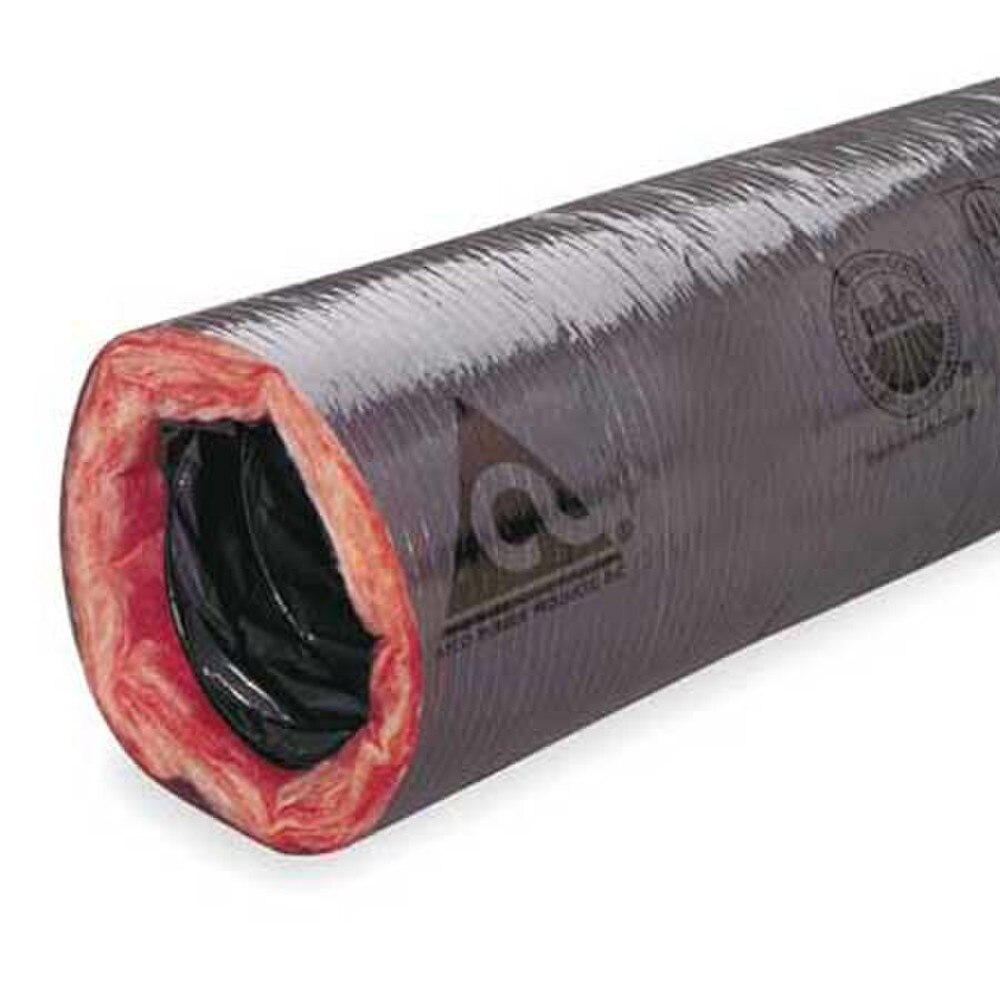

Kit includes: Duct hood and 50 feet (2x25) of 8-inch insulated (R-6) ducting.

The high fan speed setting is required when using our rear duct kit.

• Attaches easily to the rear of 6200 and 8200 wine cooling units
• Provides quick access to removable air filter
• Designed for easy hook-up to 8" ducting
• One or both openings may be ducted (total of 50 equivalent feet)
• Cold-rolled, thick-gauge steel

Brand: CellarPro

Size: 16 1/4w x 8.0625d x 22h (in)

Weight: 35 lbs

Capacity: 50 Equivalent Feet

Warranty:
1 Year
