CP VS Duct KIT (Hot Side) with Inline Fan #1440
Overview
Custom duct hood and inline fan allow the hot air intake/exhaust to be ducted up to 200 equivalent feet (100 feet per opening).
Details

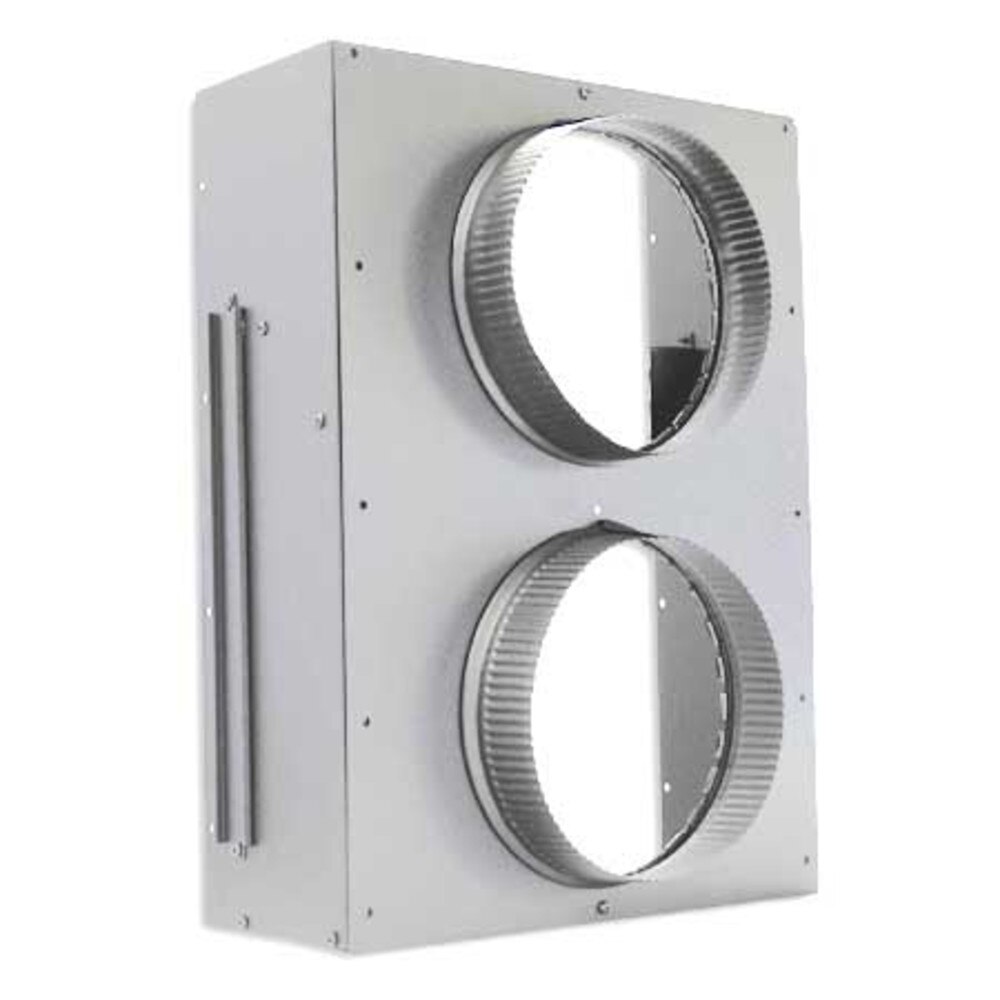

CellarPro 3200/4200 Rear Duct Kit with Inline Fan (P/N 1440). Duct openings are designed to attach to two 8" ducts for condenser intake and exhaust. Removable slot plate provides easy access to our air filter. Inline fan receives switched power from the cooling unit.
Kit includes: Rear vent cover, 240 CFM 8-inch inline fan and 50 feet (2x25) of 8-inch insulated (R-6) ducting.
Please note: The high fan speed setting is required whenever the cooling unit is ducted. The diameter of the ducting must be 8- inches or greater from start to finish, and must not be reduced.
Features
- Attaches easily to the rear of 3200 and 4200 wine cooling units
- Provides quick access to removable air filter
- Designed for easy hook-up to 8" ducting

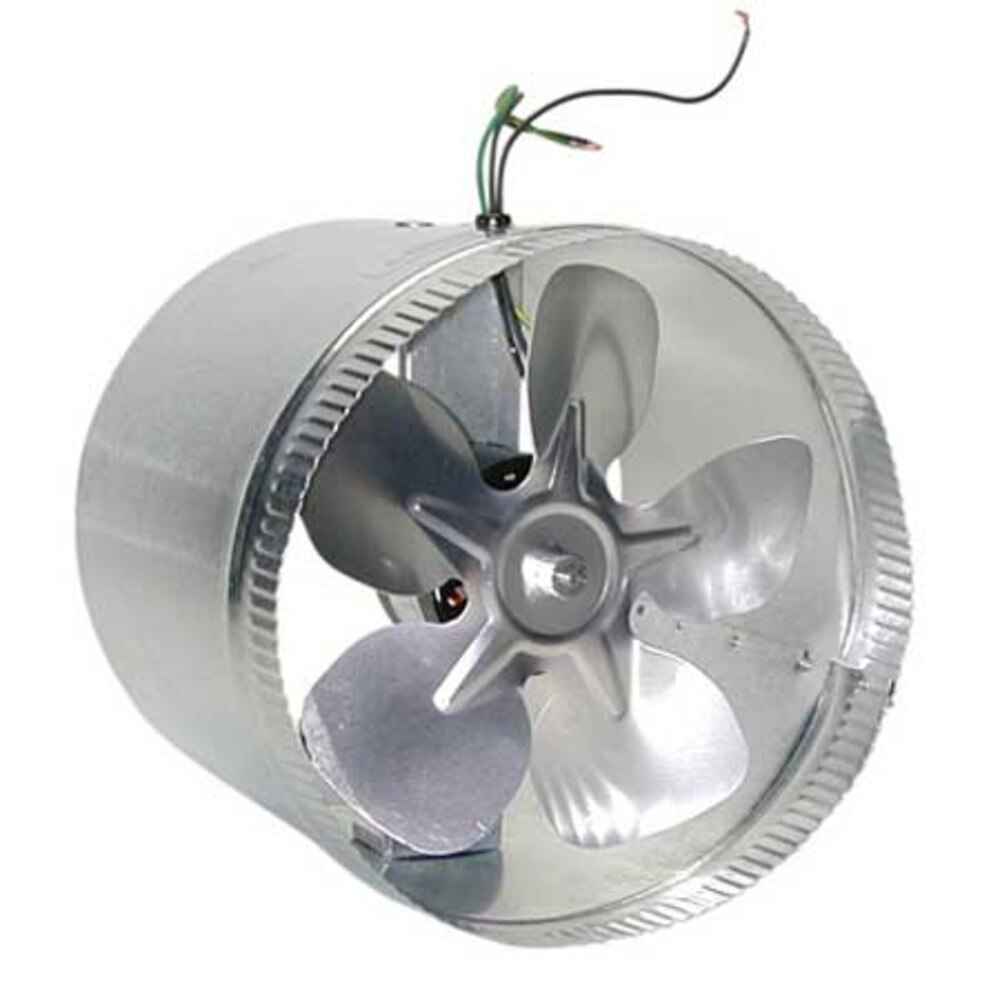

- Inline fan (3000RPM, 240 CFM) has a permanently lubricated, impedance protected motor
- Heavy gauge plated steel brackets
- Switched power to match the cooling unit

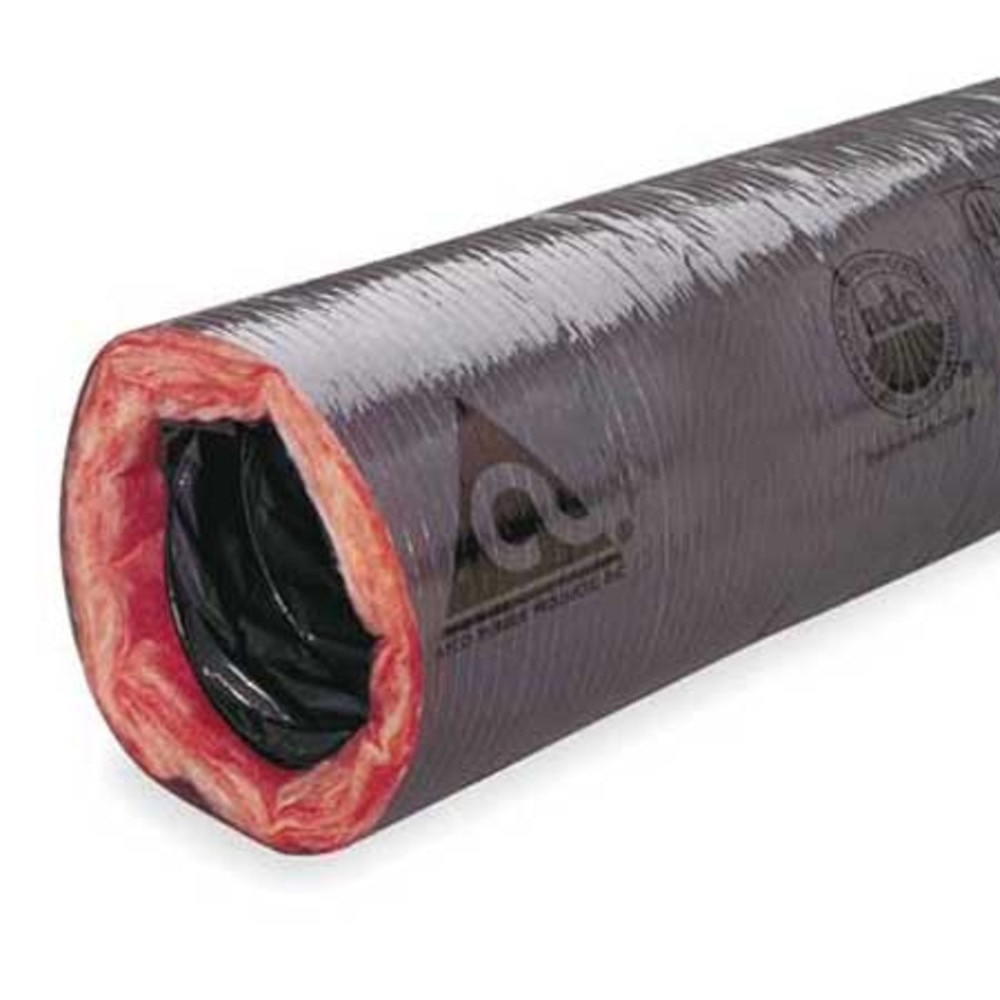

- 50 feet of 8-inch insulated ducting (R-6) included
Specs & Resources
Brand: CellarPro
Size: 14 1/2w x 8d x 19 3/4h (in)
Weight: 45 lbs
Power/Rating:
120V, 60Hz, 0.60 Amp
Capacity: 200 Equivalent Feet
Warranty:
1 Year
Click on one of the following links for more information:
- Rear Duct Hood Cut Sheet
- 3200 / 4200 + Combined Cut Sheets (As Ducted)
- Framing Diagram
- Installation Diagrams
- Ducting Installation Best Practices
The depth of the hood includes 2 1/4 (in) for the 8-inch dia. duct adapters. The hood is designed to slide over the rear of the cooling unit, and will overlap the cooling unit by approximately 1 inch.
